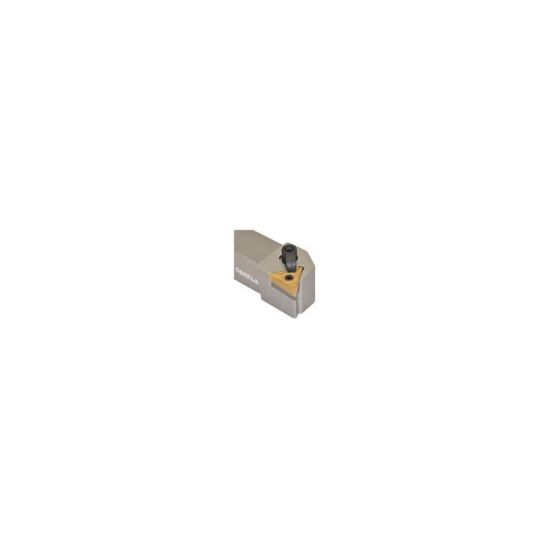

Picture of CANELA Tool MTGNL163D Turning Stick Tool Triangle 1.000 Shank 6.00 OAL

CANELA Tool MTGNL163D Turning Stick Tool Triangle 1.000 Shank 6.00 OAL

ANSI: MTGNL163D

ISO: MTGNL163D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTGNL163D
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Machine Side Connection Type Stick Tool
Lead Angle 90°
Tool Material Steel
Cutting & Machining Properties
Insert Style TN
Seat/Nest ITSN-322
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Fasteners & Connectors
Seat Screw NL-34L
Clamp/Wedge CL-20
Clamp Screw XNS-48
