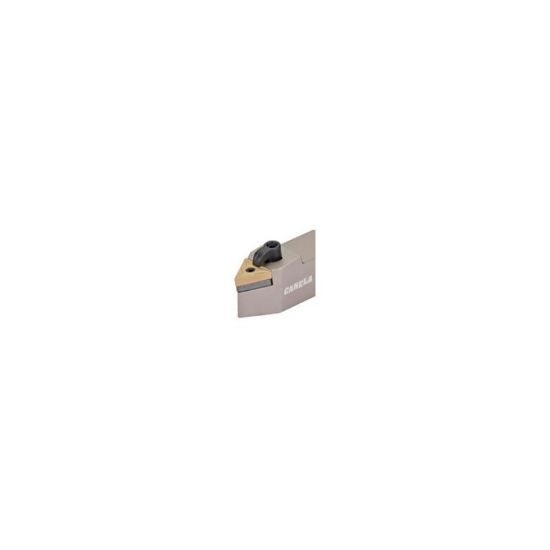

Picture of CANELA Tool MTENNS103B Turning Stick Tool Triangle 0.625 Shank 4.50 OAL

CANELA Tool MTENNS103B Turning Stick Tool Triangle 0.625 Shank 4.50 OAL

ANSI: MTENNS103B

ISO: MTENNS103B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMTENNS103B
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Lead Angle 60°
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 4.5000 114.30MM
Clearance Angle 50.0°
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Seat/Nest ITSN-322
Fasteners & Connectors
Seat Screw NL-34L
Clamp/Wedge CL-20
Clamp Screw XNS-48
