  • AB ToolS APC11-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05MM - 3/4 Cutter Dia

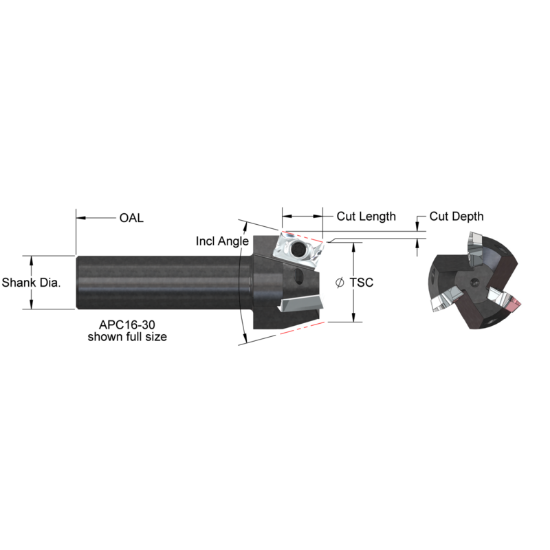

Picture of AB ToolS APC11-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05MM - 3/4 Cutter Dia

AB ToolS APC11-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05MM - 3/4 Cutter Dia

ANSI: APC11-82

ISO: APC11-82

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPC11-82
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Application General Purpose
Shipping State California
Insert/Tool Tool
Package Size 1
Application Chamfering
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.2200
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Insert Size Ic 11
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Extractor T8
Insert Style AP
Fasteners & Connectors
Insert Screw 2.5MM-AP
